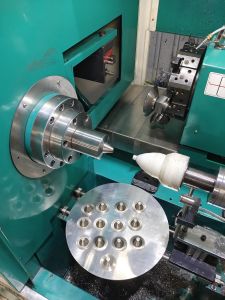

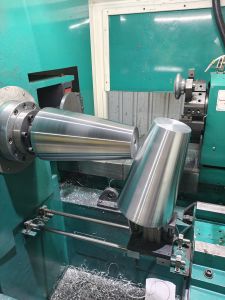

CNC Metal Spinning Machine SSGS400

CNC Metal Spinning Machine SSGS400
Price : 22.75 Lac / PieceGet Best Price

MOQ : 1 Piece(s)

Business Type Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor
Brand Name DSMM
Model SSGS400
Max. Diameter Of Material 400 mm
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

X Travel Displacement
210 mm
Z Travel Displacement
350 mm
Thickness of Work Piece
Aluminium = .5 to 4mm Mild Steel = .5 to 2.5mm Copper = .5 to 3.5mm Stainless Steel = .5 to 2
Guide Rail Type
Linear Guide Rail
Axis motor
Ac servo motor
Control system
Siemens PPU151
Servo Power X/Z
8NM X 11NM
Pushing force for x/z axis
30kN
Spindle Speed
2500 rpm
Travel of Tailstock
350 mm
Taper of tail stoke quill
MT5
Amount of Tool
4
Spindle Motor Power
10 hp
Hand Tools
1 set

Standard Configurations & Main Feature:-

  • CNC controlled
  • Machine specialized tor spinning, shear forming and machining.
  • One ortwo working slide
  • Siemens 808D panel as standard CNC system which has USB port.
  • Automatic Centering unit
  • Stationarytrimming blade
  • Automatic lubricant spray unit
  • Automatic positioning of tailstock
  • Precision ball screws ensure dynamic performance well and positioning accurately
  • Siemens/Fanuc/delta make servo system
  • Feeding axles are controlled by servo motors.
  • Hydraulic & Pneumatic tailstock.
  • Integrated automatic lubrication system makes the maintenance more reliable.
  • Semi-enclosed shield for safe working.



The Function and Application Scope:-

CNC Spinning Machine is especially developed to spin kitchenware, lamps, auto Fittings, ventilations and art wares.

This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products.

The machine can spin many materials such as steel, alloy and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate.

The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.

Note:- As improvements are made from time to time these specifications are subject to change without notice
