Shaper Machine

Shaper Machine
Price : 1.30 Lac / Piece(s)
Get Best Price

MOQ : 1 Piece(s)

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Brand Name DSMM

Preferred Buyer From

Location Worldwide

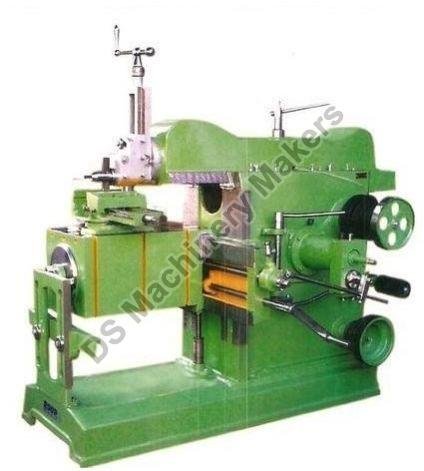

Features:- This machine is used for processing flat, contour and inclined surfaces and T-shape and fishtail-shape slots as well as special surfaces of various parts for machine manufacture and repair. The working table moves efficiently, either vertically and horizontally, and has an automatic cutter frame. The machine is well designed for reliable performance, high precision, simplified operation and maintenance.



Note:- As improvements are made from time to time these specifications are subject to change without notice.

Yes! I am interested


Specification

Model DSMM/700 DSMM/1200 DSMM/1800 DSMM/2400 DSMM/3000 DSMM/3600 DSMM/4200
  (ln.) (mm) (ln.) (mm) (In.) (mm) (ln.) (mm) (|n.) (mm) (ln.) (mm) (ln.) (mm)
7" 178 12" 305 18" 457 24" 610 30" 762 36" 914 42" 1066
CAPACITY: MM MM MM MM MM MM MM
Length of Ram Stroke 203 355 508 660 813 965 1118
Length of Ram 533 685 991 1270 1422 1778 2032
Length of Width of Ram bearing 356 x 152 482 X 203 686 X 254 787 X 305 889 X 305 1041 X 305 1219x330
Max. & Min. distance from table to Ram 127 x 12 279 X 25 381 X 25 432 X 76 483 X 76 610 X 76 660 X 76

TABLE:
Working surface of table 178 X 152 305 X 254 458 X 305 610 X 381 762 X 406 914 X 457 1066 X 508
Max. Table travel Horizontal 228 432 432 660 660 762 914
Max. Table travel vertical 127 279 381 432 483 610 660
Angular Movement of table on either sides 60' X 60' 60' X 60' 60' X 60' 60' X 60' 60' X 60' 60' X 60' 60' X 60'

TOOL HEAD:
(Max. Vertical travel of 102 152 152 177 203 254 355
Tool Slide) Maximum Swivel of Tool Head 60' X 60' 60' X 60' 60' X 60' 60' X 60' 60' X 60' 60' X 60' 60' X 60'

LENGTH OF MAIN SLIDE
BASE: 508 584 711 1016 1016 1219 1320
Length of Width of Base 762 X 457 1016 X 482 1320 X 508 1626 X 660 1880 X 660 2108 X 660 2413 X 762

SPEED & FEEDS:
Cone Pulley Belt A. SECTION B. SECTION B. SECTION B. SECTION B. SECTION C. SECTION C. SECTION
Dia of Clutch Pulley 203 254 254 356 356 356 356
Range of Ram Speeds 3 (SPM) 3 (SPM) 3 (SPM) 3 (SPM) 3 (SPM) 3 (SPM) 3 (SPM)
(SPM) 40, 80, 120 30, 60, 90 32, 64, 96 12, 24, 48 12, 24, 48 8, 16, 32 6, 12, 18
Dia of Motor Pulley 76 76 76 76 76 88 88
Range of Table Feed per stroke of Ram 0.229 0.229 0.229 0.229 0.229 0.229 0.229
Range of Tool Head Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed

DRIVE & ELECTRICAL EQUIPMENTS:
Electric Motor 1 H.P. 2 H.P. 2 H.P. 5 H.P. 5 H.P. 7 H.P. 10 H.P.
Drive Motor 1440 RPM 1440 RPM 1440 RPM 1440 RPM   1440 RPM 1440 RPM
Main Switch Starter 3.5 AMP 3.5 AMP 3.5 AMP 5AMP 1440 RPM 5 AMP 5AMP

SPECIFICATION OF VICE 127 178 203 330 5AMP 432 558

DIMENSIONS
LxWxH 838 X 762x 838 1219x762X1371 1580 X 940X 1400 1676 X 1219X1676 1930x1219X1676 1930x1219X1676 2490 X 1600X 1930

PACKING DIMENSIONS
LxWxH 1016 X 914 X 1020 1372 X 920 X 1524 1778 X 1117 X 1552 1930 X 1371 X 1830 2134 X 1371 X 1830 2160 X 1549 X 1880 2794 x 1778 x 2235

WEIGHT (APPROX.) 500 Kg. soo Kg. 1200 Kg. 1670 Kg. 1900 Kg. 2500 Kg. 3300 Kg.
