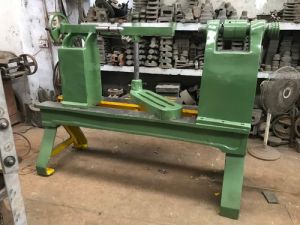

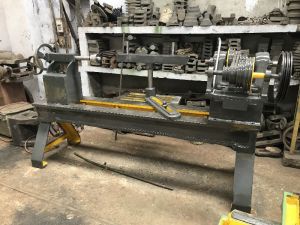

Spinning Lathe Machine


Spinning Lathe Machine

Specifications

Type Horizontal
Weight 100-1000kg
Driven Type Electric
Warranty 1 Year
Automation Grade Fully Automatic
Brand Name DSMM
After-sales Service Provided Spare Parts

Additional Information

Min. Order Quantity 1 Piece(s)

Yes! I am interested

Submit Your Requirement


Technical Specification

Length of Bed 4 1/2' 6' 8' 10' 12' 14' 16' 18' 20' 26'
Width of Bed 12" 13" 16" 18" 20" 20" 22" 26" 26" 30"
Height of Center 10" 11" 14" 16" 18" 18" 20" 24" 24" 28"
Hollow of Spindle 2 1/8" 2 5/8" 3 1/8" 3 5/8" 4 1/8" 4 1/8" 4 5/8" 4 5/8" 4 5/8" 4 5/8"
Swing over Saddle 15" 17" 20" 24" 28" 28" 32" 38" 38" 46"
Swing in gap 34" 36" 42" 48" 52" 52" 56" 74" 74" 82"
Admit between Center 18" 32" 54" 78" 90" 114" 138" 138" 162" 182"
Leading Screw Dia 1 1/2" 1 3/4" 2" 2" 2" 2 1/4" 2 1/4" 2 1/2" 2 1/2" 2 3/4"
Feed Shaft Dia 7/8" 1" 1 1/8" 1 1/4" 1 1/4" 1 1/4" 1 1/2" 1 1/2" 1 1/2" 1 3/8"
Spindle Speeds 6 6 8 8 8 8 8 6 6 8
H.P. Required 2 2 2 3 3 3 3 5 5 10
Approx Weight Qts 8Qts 10Qts 17Qts 25Qts 30Qts 35Qts 45Qts 65Qts 70Qts 105Qts
